Goyalab UV/Vis spectrometer - Spectrophotometer

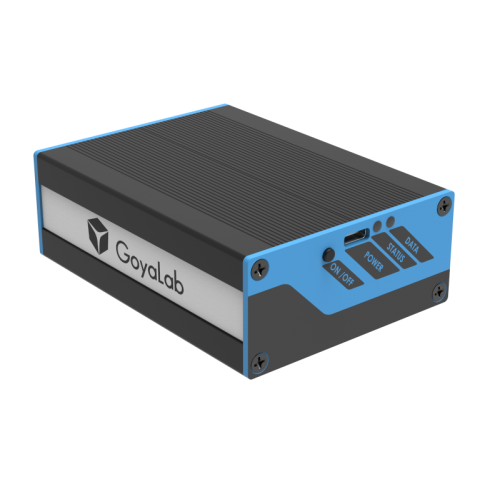

IndiGo OEM UV/Vis : a compact UV/Visible spectrometer

IndiGo OEM UV/Vis is a transmission spectrometer. It can measure emission, absorption or transmission spectra from 380 nm to 720 nm.

IndiGo OEM UV/Vis is compatible with multiple spectral analysis applications. It can be used in the laboratory or as an integrated solution for industrial applications.

Depending on its configuration, the spectral range can be customised from 380nm to 900nm and the spectral resolution (FWHM) from 0.8nm to 3nm (FWHM).

IndiGo OEM UV/Vis is powered and connected via USB 3.0 (USB-type C). It is delivered with the SpectroLab PC application (Win10 64bits) to capture and analyse spectra.

IndiGo comes pre-calibrated on the nanometric scale. Intensity calibration is an option.

SpectroLab offers the possibility to re-calibrate the IndiGo on the nanometric scale (x) axis and on the intensity (y) axis.

On the nanometric axis (x):

• Fast calibration with a compact fluorescent lamp
• Scientific calibration with a mercury-argon lamp

On the intensity (y) axis, a calibrated lamp is necessary (Example: A calibrated halogen lamp). If you have a calibrated lamp, you can calibrate yourself the intensity axis on the in IndiGo in SpectroLab. If you do not have a calibrated lamp, GoyaLab can perform this calibration for you.

IndiGo : An affordable, modular, connected visible spectrometer

IndiGo is a visible portable spectrometer. It is modular for multiple use cases. IndiGo fits in the palm of your hand.

IndiGo allows measurement of emission, absorption or transmission spectra from 380 nm to 780 nm. It has a resolution of 1 nm (FWHM).

IndiGo allows you to take spectral measurements anywhere at anytime.

IndiGo is delivered with the SpectroLab application to capture and analyse spectra:

• SpectroLab PC : a PC application for Win10 to analyse spectra (USB-C connection)
• SpectroLab Android : an Android application for smartphone and tablet to analyse spectra (Bluetooth connection)

IndiGo is compatible with all tablets and smartphones equipped with a Bluetooth 5.0 connection.

A portable, modular and customisable visible spectrometer.

GoyaLab has developed several modules compatible with the IndiGo, which will allow you to add additional functionalities to your spectrometer:

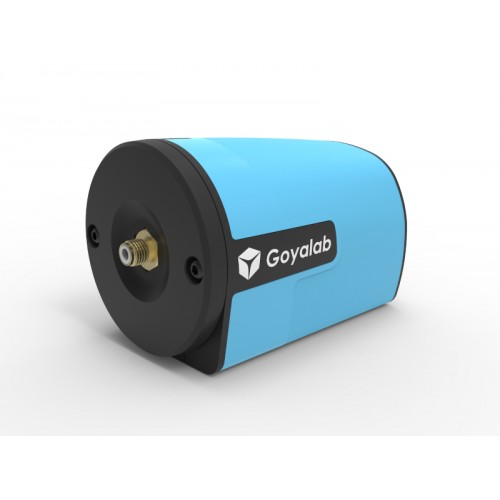

• Fiber optic adapter (Standard)
• Fluorescence with UVA excitation source
• Fluorescence with UVA and UVB excitation sources
• Laser induced fluorescence (LIF)
• Spectrophotometer : A cuvette holder module for absorption & fluorescence measurement on a liquid contained in a cuvette.

IndiGo comes pre-calibrated on the nanometric scale. Intensity calibration is an option.

SpectroLab offers the possibility to re-calibrate the IndiGo on the nanometric scale (x) axis and on the intensity (y) axis.

On the nanometric axis (x):

• Fast calibration with a compact fluorescent lamp
• Scientific calibration with a mercury-argon lamp

On the intensity (y) axis, a calibrated lamp is necessary (Example: A calibrated halogen lamp). If you have a calibrated lamp, you can calibrate yourself the intensity axis on the in IndiGo in SpectroLab. If you do not have a calibrated lamp, GoyaLab can perform this calibration for you.

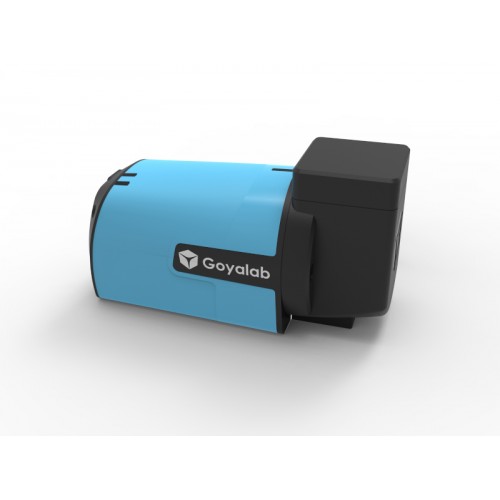

IndiGo Chemical Analysis: A handheld spectrophotometer for absorption and fluorescence measurement

IndiGo chemical analysis is a pocket size spectrophotometer. It is modular, fits in the palm of your hand.

It allows:

• absorption measurement on a liquid contained in a cuvette from  380 nm to 720 nm
• fluorescence measurement with UVA excitation (or customised) on a liquid contained in a cuvette

This is a most compact spectrophotometer / fluorescence spectrophotometer on the market.

This device can be used for multiple purposes from water analysis, fuel authentication (containing optical taggants), to natural products adulteration (olive oils, honeys, spirits).
